WJ factory audio components




Speakers and amplifiers
System / Component Upper dash tweeters Front door speakers Rear door speakers Amplifier

Standard Sound

(Radio unit and six standard 4-ohm speakers)


2.5" tweeters

P/N 56038612AA


6x9" full-range

P/N 56042131AB

superseded by
P/N 5082017AA


6.5" full-range

P/N 56038408AB

superseded by
P/N 56038408AC

superseded by
P/N 56043268AA


Built-in to radio

(40, 63, or 66w total power)


Premium Sound Infinity system

(Radio unit with external amplifier and six Infinity 4-ohm speakers. Mopar 10-disc CD changer standard with most Infinity systems)


2.5" Infinity tweeters

P/N 56038411AB

superseded by
P/N 56038411AC


6x9" Infinity woofers

P/N 56038409AB

superseded by
P/N 56038409AC

superseded by
P/N 5081669AA
P/N 5081669AB


6.5" Infinity full-range

P/N 56038410AB

superseded by
P/N 56038410AC
(1999-2001)

P/N 56038657AA
(2002-2004)


Infinity (180w)

P/N 56038407AC
(1999)

P/N 56038407AD
(2000-2001)

P/N 56038407AE
(2002)

P/N 56038407AF
(2003-2004)

P/N 56038407AG
(2004)



DaimlerChrysler & Jeep Radios

DaimlerChrysler manufactures an incredibly wide variety of radios for their different vehicles, many of which look very similar and have the same sales codes, yet may have small differences in features. When replacing a factory radio with another factory radio, it may be important to try and find the correct model made for your Jeep. For example, some Chrysler radios have the clock display defeated in vehicles that have a separate clock in the dash. Also, due to preprogrammed audio equalization levels that are programmed into the vehicle's body control module, if a signal from the radio is not recognized by the BCM (Body Control Module), the unit will default to a flat curve. Combined with various levels of speakers used from model year to model year, the sound quality of the audio can be reduced.


Mopar radio advantages vs other vehicle brands:
• Large radio makes controls easier to see and use
• “Perfect-fit mounting” eliminates squeaks and rattles
• Backlighting and vacuum fluorescent display match instrument panel exactly
• Electronically filtered to prevent damage to radio from voltage extremes and spikes
• Radio frequency emissions are kept at safe levels to avoid interference with vehicle electronic components

AM/FM Cassette Radios
Component Sales Code & P/N Comments Model Year(s)

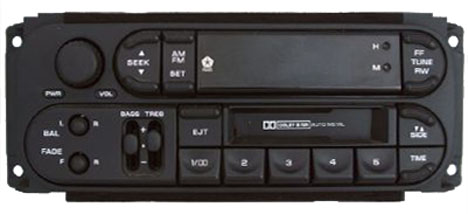

RAS

P/N 4858583AE
P/N 4858583AF
(1999)

P/N 56038931AB
(1999-2001)

Two-band Graphic Equalizer
No CD changer control
No PCI Bus connection
  • 40 watts of total power @ 3% THD
  • Separate bass/treble controls
  • 10 AM/10 FM station presets
  • Dolby B® Noise Reduction on tape
  • Soft-touch electronic cassette with auto reverse
  • Fast forward/rewind
  • Bi-directional seek
1999-2001
  RBA

P/N 4858516AD
(1999-2000)

CD changer control 1999-2000
  RBL

P/N 4858513AF
(1999)

P/N 4858513AH
P/N 4858513AK
(2000)

CD changer control 1999-2000
RBN

P/N 4858584AF
(1999)

P/N 4858584AG
P/N 4858584AH
(2000)

Three-band Graphic Equalizer
CD Changer Control

  • 66 watts of total power @ 3% THD
  • 10 AM/10 FM station presets
  • Seek-and-scan
  • Soft-touch controls
  • Cassette auto reverse
  • Dolby B® Noise Reduction on tape
  • Fast forward/rewind
  • Music search
1999-2000
RBB

P/N 56038518AH
(1999-2001)

P/N 56038518AI
P/N 56038518AJ
(2001)

P/N 56038588AK
P/N 56038588AL
P/N 56038588AM
(2002)

P/N 5064335AB
P/N 5064335AF*
P/N 5064335AG*
P/N 5064335AH
(2003)

(*Some RBB radios with these part numbers exhibited static problems. This affected units built before July 31, 2002. If under warranty, these units were exchanged with P/N 5064335AH radios.)

P/N 5064335AI
P/N 5064335AJ
(2003-2004)

P/N 5091555AE
(2004)

Two-band Graphic Equalizer
CD Changer Control

  • 66 watts of total power @ 3% THD
  • 10 AM/10 FM station presets
  • AM Frequency Range: 530 kHz~1700kHz
  • AM Maximum Sensitivity: 12dB (uV)
  • AM S/N Ratio: 50dB
  • FM Frequency Range: 87.9MHz~107.9MHz
  • FM S/N Ratio: Mono 55dB, Stereo 50dB
  • FM Ignition Noise Killer
  • Bidirectional seek
  • Soft-touch controls
  • Cassette auto reverse
  • True fast forward/rewind
  • Push in fader and balance controls

1999-2004




AM/FM CD Radios
Component Sales Code & P/N Comments Model Year(s)
RBK

P/N 56038589AK
P/N 56038589AL
P/N 56038589AM
P/N 56038589AN
(2002)

P/N 5064354AC
P/N 5064354AD
P/N 5064354AE
   P/N 5064354AF*
P/N 5064354AG*
P/N 5064354AH
(2003)

(*Some RBK radios with these part numbers exhibited static problems. This affected units built before July 31, 2002. If under warranty, these units were exchanged with P/N 5064354AH radios.)


P/N 5064354AI
P/N 5064354AJ
superseded by:
P/N 5091888AA
superseded by:
P/N 05161260AA
(2003-2004)

P/N 5091556AE
(2004)

Two-band Graphic Equalizer
CD Changer Control
Satellite Radio capable (2002-up models)
  • 66 watts of total power @ 3% THD
  • 10 AM/10 FM station presets
  • AM Frequency Range: 530 kHz~1700kHz
  • AM Maximum Sensitivity: 12dB (uV)
  • AM S/N Ratio: 50dB
  • FM Frequency Range: 87.9MHz~107.9MHz
  • FM S/N Ratio: Mono 55dB, Stereo 50dB
  • FM Ignition Noise Killer
  • Seek-and-scan
  • Balance/fader speaker control
  • Digital clock
  • CD fast forward/reverse
  • CD Seek-and-scan
  • Elapsed time display
  • CDR playback capability
2002-2004
RBQ

P/N 56038622AD
P/N 56038622AE
P/N 56038622AF
P/N 56038622AG
P/N 56038622AH
P/N 56038622AI
(2003)

P/N 56038622AJ
(2003-2004)

Two-band Graphic Equalizer
No CD changer control
Integral 6-disc CD changer
Satellite Radio capable
  • 66 watts of total power @ 3% THD
  • 10 AM/10 FM station presets
  • Seek-and-scan
  • Balance/fader speaker control
  • Digital clock
  • CD fast forward/reverse
  • CD Seek-and-scan
  • Elapsed time display
2003-2004




AM/FM Cassette + CD Radios
(Included with all Infinity systems. Optional on some models w/o Infinity system)
Component Sales Code & P/N Comments Model Year(s)
  RAD

P/N 4858543
(1999)

P/N 4858543AB
(2000)

Two-band Graphic Equalizer
No CD changer control
1999-2000
RAZ

P/N 4858540AD
P/N 4858540AE
P/N 4858540AF
(1999)

P/N 4858540AG
P/N 4858540AH
(2000-2001)

Three-band Graphic Equalizer
No CD changer control
  • 62 watts of total power @ 3% THD
  • 10 AM/10 FM station presets
  • Seek-and-scan
  • Balance/fader speaker control
  • Soft-touch cassette controls
  • Cassette auto reverse, fast forward/rewind
  • Dolby B® Noise Reduction on tape
  • Music search
  • CD player has optical sensing mechanism instead of mechanical to draw CD in
  • CD playback features - track access (skip), fast forward/reverse, random play
1999-2001
RAZ

P/N 56038555AG
P/N 56038555AH
P/N 56038555AJ
P/N 56038555AK
P/N 56038555AL
(2002)

P/N 56038555AM
(2003-2004)

Two-band Graphic Equalizer
CD Changer Control
RDS capable
Satellite Radio capable
  • 62 watts of total power @ 3% THD
  • 32 Watt Bridge Audio System (8W at 5% THD, 8 ohms load - 4 Amplifiers)
  • 10 AM/10 FM station presets
  • AM Frequency Range: 530 kHz~1700kHz
  • AM Maximum Sensitivity: 12dB (uV)
  • AM S/N Ratio: 50dB
  • FM Frequency Range: 87.9MHz~107.9MHz
  • FM S/N Ratio: Mono 55dB, Stereo 50dB
  • FM Ignition Noise Killer
  • Up/Down Seek and Scan Tuning
  • Full Lighting - Vacuum Flourescent Display
  • Balance/fader speaker control
  • Two-band Graphic Equalizer
  • Soft-touch cassette controls
  • Cassette auto reverse, fast forward/rewind
  • Dolby B® Noise Reduction, Cassette Mode
  • Automatic Metal Tape Equalization
  • Music search
  • CD player has optical sensing mechanism instead of mechanical to draw CD in
  • CD playback features RD track access (skip), fast forward/reverse, random play
  • CDR playback capability
  • Dot matrix display
2002-2004
RBP

P/N 56038623AF

Two-band Graphic Equalizer
CD changer control

  • 66 watts of total power @ 3% THD
  • 10 AM/10 FM station presets
  • Seek-and-scan
  • Balance/fader speaker control
  • CD random play
  • CD fast forward/reverse
  • Cassette auto reverse
  • Cassette fast forward/rewind
1999-2001
RBP

P/N 56038586AF
P/N 56038586AG
P/N 56038586AH
(2002)

superseded by:

P/N 56038555AH
P/N 56038555AJ
P/N 56038555AK
P/N 56038555AL
P/N 56038555AM*
(*cabin EQ 2.0)
(2002)

Two-band Graphic Equalizer
CD changer control
RDS capable
Satellite Radio capable
2002
  RBP

P/N 5064125AC
(2003)

P/N 5064125AD
P/N 5064125AE
(2003-2004)

Two-band Graphic Equalizer
CD/DVD changer control
RDS capable
Satellite Radio capable

  • 66 watts of total power @ 3% THD
  • 10 AM/10 FM station presets
  • Seek-and-scan
  • Balance/fader speaker control
  • Two-band Graphic Equalizer
  • Soft-touch cassette controls
  • Cassette auto reverse, fast forward/rewind
  • Dolby B® Noise Reduction on tape
  • Music search
  • CD player has optical sensing mechanism instead of mechanical to draw CD in
  • CD playback features RD track access (skip), fast forward/reverse, random play
  • Dot matrix display
2003-2004
  RBT

P/N 5064384AA
P/N 5064384AB
P/N 5064384AC
P/N 5064384AD
P/N 5064384AE
(2003)

CD changer control? 2003




RBU

P/N 56038620AK
(2002)

P/N 5064123AA
P/N 5064123AB
(2003)

P/N 5064123AC
(2004)


Rear seat
headphone kit (2)

P/N 4685923AA
(2002)

P/N 05082012AD
(2003-2004)

Rear seat
Single headphone

P/N 04685936AD
(2002-2004)

Two-band Graphic Equalizer
CD changer control
RDS capable
Satellite Radio capable
Rear seat audio control

  • 66 watts of total power @ 3% THD
  • 10 AM/10 FM station presets
  • Dot matrix display
  • Seek-and-scan
  • Joystick balance/fader speaker control
  • Rear seat audio function
  • Optional 900 MHz Headphone kit available

The rear seat audio function allows passengers to use wireless headphones and a wireless remote control to listen to different music source than vehicle's main speaker system. RDT 900MHz Headphones, includes infrared remote w/batteries.

2002-2004
  RBY

P/N 56038583AH
P/N 56038583AI
(1999-2000)

superseded by:

P/N 05140895AA
(2002)


P/N 05064383AB
P/N 05064383AC
P/N 05064383AD
P/N 05064383AE
P/N 05064383AF
(2003)

superseded by:

P/N 05091519AA
(2003)

CD changer control? 2002
Sirius Receiver

P/N 82206488AA
(2002-2004)

For additional information see our Sirius Satellite Radio section.

Optional Sirius Satellite Radio kit

Adaptable to most 2002 and newer factory radios. Introduced summer 2001, service first available early 2002. Monthly subscription fee required. For activation information see our Sirius Satellite Radio section.

Receiver
P/N 82206488AB (MSRP $474)

Installation Kit & Antenna
(for WJ's with CD changer)

Includes Instruction Sheet, templates, wiring harness, antenna cable, connector , brackets and hardware.
P/N 82207564  (MSRP $152.00)

Installation Kit & Antenna
(for WJ's without CD changer)
Includes Instruction Sheet, templates, wiring harness, antenna cable, connector , brackets and hardware.
P/N 82206489  (MSRP $154.00)

Song Title / Artist name display option (RB1 NAV Radio only)
A special audio system adaptor cable is required to engage this function on the RB1. Released April 2003.
P/N 82208322  (MSRP $41.00)

2002-2004




AM/FM/CD/NAV Radio
Component Sales Code & P/N Comments Model Year(s)
RB1 NAV radio

P/N 56038629AB
(radio unit only, Mopar)
(2002-2003)

P/N 56038629AC
P/N 56038629AD
(2003-2004)

P/N 82206406AB
P/N 82206406AB
(2002-2004 Mopar kit)

P/N 82208715
(2004)


Satellite Radio Song Title/Artist
display adaptor

A special audio system adaptor cable is required to engage this Sirius Satellite Radio option for the RB1. Available as of April 2003.

Mopar P/N 82208322

See our Sirius Satellite Radio section for additional information.

AM/FM/CD/Navigation Radio
DVD based navigation system
Two-band on-screen Equalizer
CD changer control
RDS capable

  • 66 watts total power at 3% total harmonic distortion
  • 4.1" (actual size) navigation screen
  • CD/CDR/CDRW compatibility
  • 1.5 DIN mounting size
    (3" H x 5.51" D x 7.87" W)
  • 30 station presets
  • Sirius Satellite Radio capable
  • Radio Program Type (PTY)

Introduced as a Mopar accessory November 2002. Factory installed option on 2004 models. Packaged in a vehicle-specific kit for 2002-2004 models (one kit for all Grand Cherokees).

See our RB1 Navigation Radio page for more information and complete specifications.

2002-2004





10-disc remote CD changer
Component Comments Year




CD changer



CD changer



cd changer

Sales code RDP. Mounted in right rear quarter panel. 11-disc total capacity including head unit single slot. Included with most Infinity systems from 1999-2001. For 2002-up, optional on some Laredo packages and standard with most Infinity systems. The changer can be added to any and all WJ models that have a factory head unit with the CD changer controls.


Factory installed 10-disc CD changer units:

P/N 56038579AB (1999)

P/N 56038579AC (2000)

P/N 56042129AG (2001-2004)

P/N 56042129AH (2004)


Mopar 10-Disc CD changer kits:

(Kit includes CD changer, 5-meter DIN cable to run from the radio to the changer, mounting screws and bracket, and one 10-disc magazine.)

1999-2001 P/N 82204627

2002-2004 P/N 82207521


Rear console kits:

(Required to house the CD changer)

Agate P/N 82204624

Taupe P/N 82204626

Sandstone P/N 82206899

Slate Gray P/N 82207539


Available installation and replacement parts:

CD changer factory mounting bracket
Used for installing the Mopar changer in all models
(Included only with Mopar changer kits, not available separately)

CD changer Mopar mounting bracket
This bracket was designed for the FM Modulated CD player kit that was released a few years ago. It will NOT work for direct mounting of the standard 10-disc factory changer since it is about 1/4" too narrow. However, since the bracket fits into the same 4 body mounting holes it may be possible to re-drill the changer and other mounting holes to make it fit.
P/N 82204864

8-pin square (Changer) to 8-pin round (Radio) cable
Used for installing the Mopar changer in 1999-2001 models
(Included with Mopar changer kits)
P/N 5013661AA.

8-pin square (Changer) to 10-pin square(Radio) cable
Used for installing the Mopar changer in 2002-2004 models
(Included with Mopar changer kits)
P/N 05080971AA.

Bracket-to-body mounting studs (4 required)
(Included with Mopar changer kits)
P/N 6505002AA

Bracket-to-body stud nuts (M6x1.0, with washers, 4 required)
(Included with Mopar changer kits)
P/N 6100047

Changer-to-bracket screws (6 required)
(Included with Mopar changer kit)
P/N ?

10-disc Magazine
P/N 4858564



Changer Specifications:

Manufactured by Mitsubishi
Rear cargo area mount
3-Beam laser tracking (for CD-R playback)
Viscous silicone dampeners
Signal-to-Noise Ratio: 95dB
Channel Separation: 80dB
Frequency Response: 5 - 20,000Hz (+/-1dB)
Total Harmonic Distortion: 0.008% (at 1kHz)
Wow & Flutter: Below Measurable Limits
Dimensions: 10-3/4" W x 7" H x 3" D.


See also: CD Changer removal

1999-2004





Infinity GoldTM  system
Components Comments Year
The Infinity Gold Premium Sound system includes the following components:
  • AM/FM/Cassette/CD head unit (various styles used)
  • 6-channel 180-watt amplifier
  • 2x 2.5" front tweeters
  • 2x 6x9" front woofers
  • 2x 6.5" rear full-range speakers
  • 10-disc CD changer (Optional on some models, see chart below. Also available as an accessory add-on for any model with a CD changer function on the radio).
1999-2004


Infinity Goldtm system availability 10-disc changer
Year Laredo / Sport Special
Edition
Freedom
Edition
Limited Overland (Optional unless noted)
1999 N/A "D" Package
Optional "E", "F"
--- --- Standard --- N/A Laredo "D"
2000 Optional "E"
Standard "F"
--- --- Standard --- Optional all models
2001 N/A "E"
Optional "F"
Standard "S"
--- --- Standard --- N/A Laredo "E"

Standard on:
Limited "K"

2002 Optional "E"
Standard "F"
Standard on Sport
Standard --- Standard Standard N/A Laredo "E"
N/A Sport

Standard on:
Special Edition
Limited "K"
Overland

2003 Optional "E"
Standard "F"
--- --- Standard Standard N/A Laredo "E"

Standard on:
Limited "K"
Overland

2004 Optional "E"
Standard "F"
Standard Standard Standard Standard N/A Laredo "E"

Standard on:
Special Edition
Freedom Edition
Sport
Limited "K"
Overland







Subwoofer
Component Comments Year

radio_subwoof2s.jpg - 21768 Bytes
Optional Mopar woofer accessory kit. Discontinued in 2002 but may still be available at some dealers. Built-in 50-watt amplifier with 8" woofer. Interior matched color, netted storage compartment. Includes wiring harness adaptor.

Agate (P/N 82205263) (MSRP $400.00)

Camel (P/N 82205264) (MSRP $400.00)

Dark Taupe (P/N 82205265) (MSRP $400.00)

Replacement amplifier (P/N 5017103AA) (discontinued)

Replacement speaker kit (P/N 5017101AA) (MSRP $40.70)

1999-2002



JustForJeeps.com
WKJeeps.com website Premier Sponsor
Discount Jeep Parts and Accessories
shipped worldwide





Home     Main menu
