WJ Dimensions and specifications

Exterior dimensions Interior dimensions Capacities and weights Drive systems
Powertrain Suspension and chassis Towing data




Exterior dimensions
Length
    Wheelbase 105.9"
    Overall length 181.7"
    Overhang, front / rear 32.1" / 43.6"
Width
    Track, front / rear 59.5" / 59.5"
    Overall width (at B-pillar) 72.3"
Height 69.4"
Drag coefficient 0.450
Windshield slope angle 57.0o
Ground clearance (at curb weight)
    Approach angle 36.7o
    Breakover angle 22.6o
    Departure angle 28.6o
Running ground clearance
    Greatest possible (front & rear axels) / Least possible (at TC skid plate) 9.1" / 8.7"


Interior dimensions
Headroom, front / rear 39.7" / 39.5"
Legroom, front / rear 41.4" / 35.3"
Shoulder room, front / rear 58.9" / 57.8"
Hiproom, front / rear 56.5" / 52.4"
Knee clearance, rear 0.6"
Torso angle, front / rear 24.0o
Steering wheel column angle 24.0o
Cargo volume cu. ft. (rear seats up / folded)
(See also: Cargo area dimensions)
39.0 / 72.3
Seating
   Capacity 5
   Recliner range 19.3° power seats, 18.0° manual
   Travel 7.4" longitudinal; 1.75" vertical/tilt (power only)


Capacities and weights
Fuel tank — gal. 20.5
Base curb weight (2WD) — lb.
    Laredo 2WD (4.0) 3786
    Laredo 2WD (4.7) 3863
    Limited 2WD (4.0) 3895
    Limited 2WD (4.7) 3964
    Limited 2WD (4.7 H.O.) 3999
Base curb weight (4WD) — lb.
    Laredo 4WD (4.0) 3970
    Laredo 4WD (4.7) 4041
    Limited 4WD (4.0) 4072
    Limited 4WD (4.7) 4147
    Limited 4WD (4.7 H.O.) 4206
    Overland 4WD (4.7 H.O.) 4364
Payload capacity— lb. (with all occupants and cargo)1000
Maximum Gross Vehicle Weight rating — lb.
    4.0L Power Tech I-6 5400
    4.7L Power Tech V8 and High-Output V8 5500


Powertrain
Engine 4.0L Power Tech I-6 4.7L Power Tech V8 High-Output 4.7L Power Tech V8
Net Horsepower (bhp) @ rpm 195 @ 4600 235 @ 4800 265 @ 5200
Net Torque lb-ft @ rpm 230 @ 3000 295 @ 3200 325 @ 3600

For additional engine specs see WJ Engine Specifications

Transmission 4-speed automatic with overdrive and lockup torque converter, electronic governor and converter clutch, electronically controlled (4.0L I-6)

Gear ratios:
1st  - 2.74
2nd - 1.54
3rd - 1.0
4th - 0.71
Rev - 3.0

Axle - 3.55, 3.73 optional

Overall Top Gear 2.45 —standard; 2.57 —optional

5-speed multi-range automatic with alternate second gear ratio, three planetary gear sets, second overdrive, one overrunning clutch, and lockup torque converter, electronically controlled (45RFE, 4.7L V8)

Gear ratios:
1st  - 3.00
2nd - 1.67 (upshift), 1.50 (kickdown)
3rd - 1.0
4th - 0.75
5th - 0.67
Rev - 3.0

Axle - 3.73

Overall Top Gear 2.80—4th; 2.50—5th


Drive systems
Type 1: NV147 Quadra-Trac ITM

On-demand 4-wheel drive transfer case with one operating range - the only operating range is 4-high. Optional on 2004 Laredo models only.

Operating Modes: 4WD High, full-time

Center Differential: Planetary with low-range lock

Torque Split: F/R 48/52

Type 2: NV247 Quadra-Trac IITM

On-demand 4-wheel drive transfer case with two operating ranges and a neutral position. Operating ranges are 4-high and 4-low. The 4-low range is used for extra pulling power in off-road situations. Utilizes a gerotor coupling to automatically send torque to the front driveshaft when wheel slippage occurs.

Operating Modes:

4WD High
Neutral
4WD Low, part-time

Low Range Ratio: 2.72:1

Center Differential: Gerotor pump-applied disc clutch with low-range lock

Torque Split: Variable (0-100%)

Type 3: NV242 Selec-TracTM

Provides full time 2-wheel, or 4-wheel drive operation. A differential in the transfer case is used to control torque transfer to the front and rear axles. A low range gear provides increased low speed torque capability for off road operation. The geartrain is mounted in two aluminum case halves attached with bolts. The mainshaft front and rear bearings are mounted in aluminum retainer housings bolted to the case halves.

Operating Modes:

2WD
4WD High, full-time
4WD High, part-time
Neutral
4WD Low, part-time

Low Range Reduction Ratio: 2.72:1

Center Differential: Open, Planetary with low-range lock

Torque Split: F/R 48/52

Type 4: Quadra-DriveTM (NV-247 or NV-147 transfer case with Vari-Lok differentials)

On demand, utilizes a gerotor and coupling in the Quadra-Trac II transfer case and gerotor couplings in the Vari-Lok front and rear progressive axles to send torque to the front driveshaft and/or from side-to-side within each axle when wheel slippage occurs; includes low-range (2.72:1)


Suspension and chassis
Front Suspension Solid axle for optimum ground clearance with four locating arms, coil springs, track and stabilizer bars, steering damper and low-pressure gas-charged shock absorbers (Monotube high-pressure gas charged shock absorbers on Overland & U/C Pkg); Quadra-Trac II(TM) 4WD-equipped models feature constant velocity joints

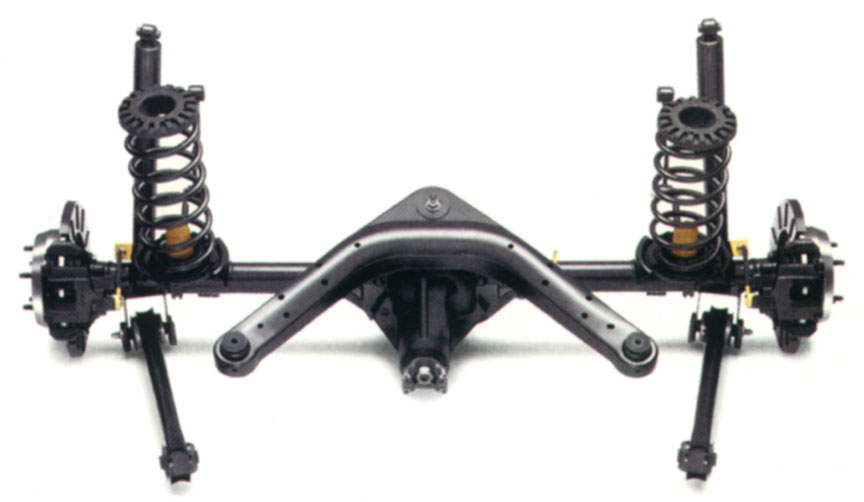

Rear Suspension Solid axle for optimum ground clearance with two trailing lower arms, triangular upper arm, coil springs, stabilizer bar, low-pressure gas-charged shock absorbers (Monotube high-pressure gas charged shock absorbers on Overland & U/C Pkg)
Steering Power-assisted, recirculating ball
Overall ratio: 14.2:1
Steering Turns (lock-to-lock): 2.94
Turning Diameter 37.4 ft. curb-to-curb
Brake System Front — Hydraulic, power-assisted low-drag ventilated disc brakes; dual piston calipers; composite steel; 12.0-in rotor diameter
Rear — Hydraulic, power-assisted low-drag disc brakes; single piston calipers; composite steel; 12.0-in rotor diameter
Anti-lock brake system — Three-channel with four-wheel speed sensors and electronic brake distribution (EBD)


Towing data
Engine Transmission Maximum Loaded Trailer Weight
4.0L Power Tech I-6 4-speed automatic 5,000 lb
4.7L Power Tech V8 5-speed automatic 6,500 lb
High-Output 4.7L Power Tech V8 5-speed automatic 6,500 lb
Maximum gross combined weight rating
Class 2WD 4WD
III 9550 lb 7550
IV 11,000 lb 11,000 lb
Tongue Load Limit
III, IV 750 lb
Maximum trailer length
III 25 feet
IV 30 feet
Trailer frontal area limitation of 64 square feet; trailer sway control and low-profile mirrors are recommended. This chart is meant to serve as a quick and easy reference guide on how to properly equip your Jeep Grand Cherokee for towing. For specific details, however, discuss your plans with your Jeep dealer, who will help you select the right equipment to meet your specifications.


For detailed WJ Towing and trailer information see WJ towing
